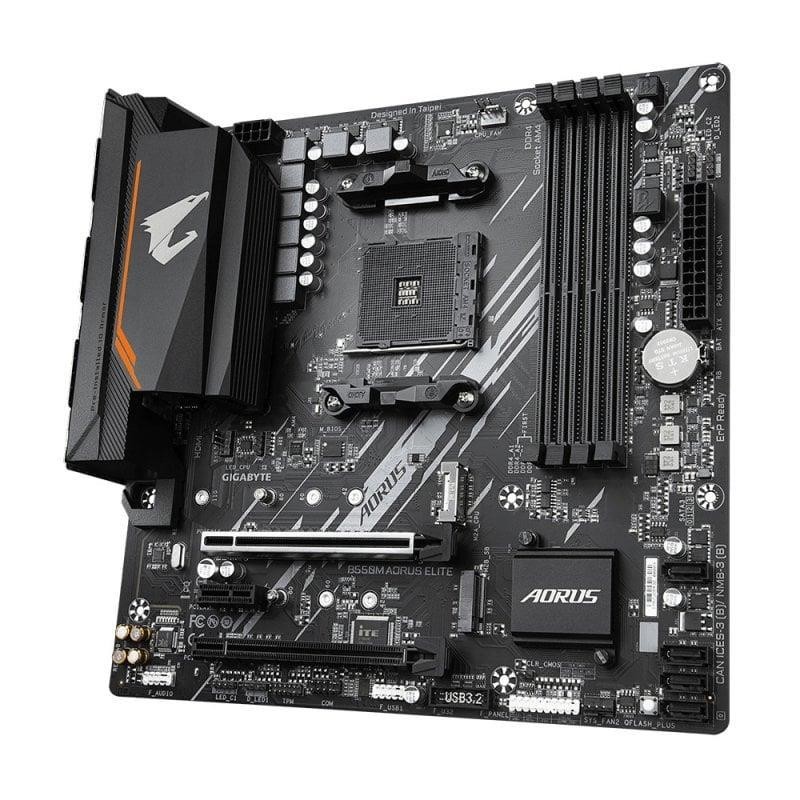

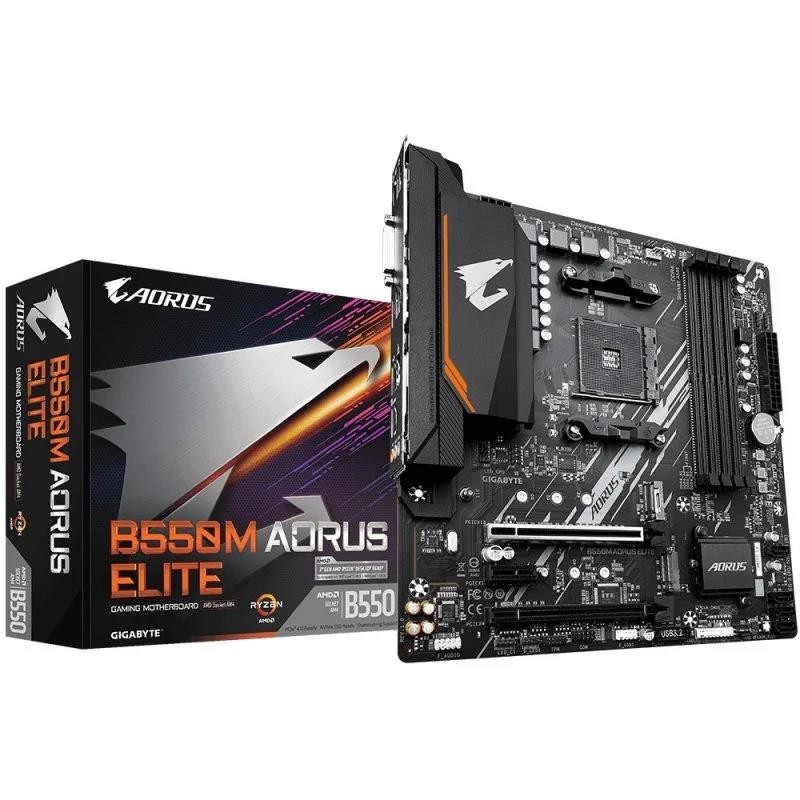

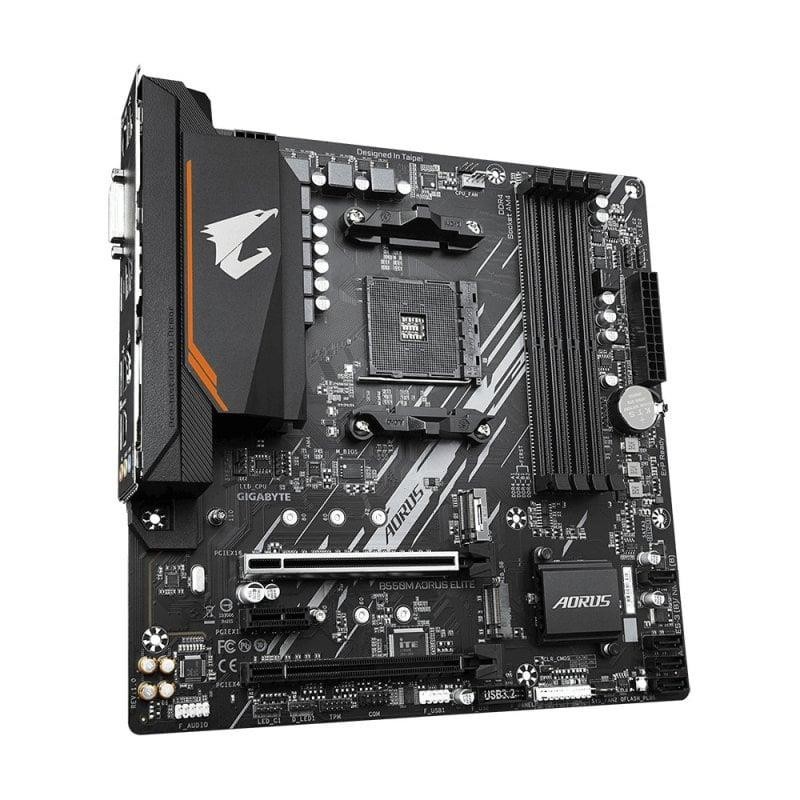

PLACA BASE GIGABYTE GA-B550M AORUS ELITE AMD AM4 HDMI + DVI

120,03 €
Impuestos incluidos
GA-B550M-AORUSELITE
1 Artículo
Socket
AM4
Chipset
AMD B550
Factor
Micro-ATX
La placa base Gigabyte B550M AORUS ELITE soporta los procesadores AMD Ryzen de tercera generación.
Cantidad

Características:

  • Admite procesadores AMD Ryzen ? de tercera generación
  • Doble canal ECC / No ECC DDR4 sin búfer, 4 DIMM
  • Solución VRM digital pura de 5 + 3 fases con MOSFET de bajo RDS (encendido)
  • Ranura Ultra16 Durable ? PCIe 4.0 Ready x16
  • Conectores duales Ultra-Fast NVMe PCIe 4.0 / 3.0 M.2
  • Condensadores de audio de alta calidad y protección contra ruido de audio para la mejor calidad de audio
  • LAN GbE Gaming 8118 exclusiva de GIGABYTE con gestión de ancho de banda
  • Soporte trasero HDMI y DVI
  • RGB FUSION 2.0 con diseño de espectáculo de luces LED direccionables multizona, compatible con tiras LED direccionables y LED RGB
  • Smart Fan 5 presenta múltiples sensores de temperatura, encabezados de ventilador híbridos con FAN STOP
  • Q-Flash Plus Update BIOS sin instalar la CPU, la memoria y la tarjeta gráfica
  • Diseño de resistencias anti-azufre

Especificaciones:

  • CPU
    • AMD Socket AM4, support for: 3rd Generation AMD Ryzen? processors/ 3rd Generation AMD Ryzen? with Radeon? Graphics processors
    • (Please refer "CPU Support List" for more information.)
  • Chipset
    • AMD B550
  • Memory
    • 4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity) of system memory
    • 3rd Gen AMD Ryzen? Processors:
    • Support for DDR4 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules
    • New Generation AMD Ryzen? with Radeon? Graphics processors:
    • Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4000(O.C.) / 3600(O.C.) / 3333(O.C.) /3200/2933/2667/2400/2133 MHz memory modules
    • Dual channel memory architecture
    • Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules
    • Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
    • Support for Extreme Memory Profile (XMP) memory modules
    • (Please refer "Memory Support List" for more information.)
  • Onboard Graphics
    • Integrated in the 3rd Generation AMD Ryzen? with Radeon? Graphics processors:1 x DVI-D port, supporting a maximum resolution of 1920x1200@60 Hz
    • * The DVI-D port does not support D-Sub connection by adapter.
    • 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz
    • * Support for HDMI 2.1 version, HDCP 2.3, and HDR.
    • Maximum shared memory of 16 GB
  • Audio
    • Realtek® ALC887 codec
    • High Definition Audio
    • 2/4/5.1/7.1-channel
    • * To configure 7.1-channel audio, you need to open the audio software and select Device advanced settings > Playback Device to change the default setting first. Please visit GIGABYTE's website for details on
    • configuring the audio software.
  • LAN
    • Realtek® GbE LAN chip (1000 Mbit/100 Mbit)
  • Expansion Slots
    • 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:3rd Generation AMD Ryzen? processors support PCIe 4.0 x16 mode
    • 3rd Generation AMD Ryzen? with Radeon? Graphics processors support PCIe 3.0 x16 mode
    • * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot.
    • 1 x PCI Express x16 slot (PCIEX4), integrated in the Chipset:Supporting PCIe 3.0 x4 mode
    • 1 x PCI Express x1 slot (PCIEX1), integrated in the Chipset:Supporting PCIe 3.0 x1 mode
  • Storage Interface
    • 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2242/2260/2280/22110 SSDs:3rd Generation AMD Ryzen? processors support SATA and PCIe 4.0 x4/x2 SSDs
    • 3rd Generation AMD Ryzen? with Radeon? Graphics processors support SATA and PCIe 3.0 x4/x2 SSDs
    • 1 x M.2 connector (M2B_SB), integrated in the Chipset, supporting Socket 3, M key, type 2242/2260/2280 SSDs:Supporting SATA and PCIe 3.0 x2 SSDs
    • 4 x SATA 6Gb/s connectors, integrated in the Chipset:Support for RAID 0, RAID 1, and RAID 10
  • USB
    • CPU:4 x USB 3.2 Gen 1 ports on the back panel
    • Chipset:2 x USB 3.2 Gen 1 ports available through the internal USB header
    • 6 x USB 2.0/1.1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
  • Internal I/O Connectors
    • 1 x 24-pin ATX main power connector
    • 1 x 8-pin ATX 12V power connector
    • 1 x CPU fan header
    • 2 x system fan headers
    • 2 x addressable LED strip headers
    • 2 x RGB LED strip headers
    • 1 x CPU cooler LED strip/RGB LED strip header
    • 2 x M.2 Socket 3 connectors
    • 4 x SATA 6Gb/s connectors
    • 1 x front panel header
    • 1 x front panel audio header
    • 1 x USB 3.2 Gen 1 header
    • 1 x USB 2.0/1.1 header
    • 1 x Trusted Platform Module (TPM) header (2x6 pin, for the GC-TPM2.0_S module only)
    • 1 x serial port header
    • 1 x Clear CMOS jumper
    • 1 x Q-Flash Plus button

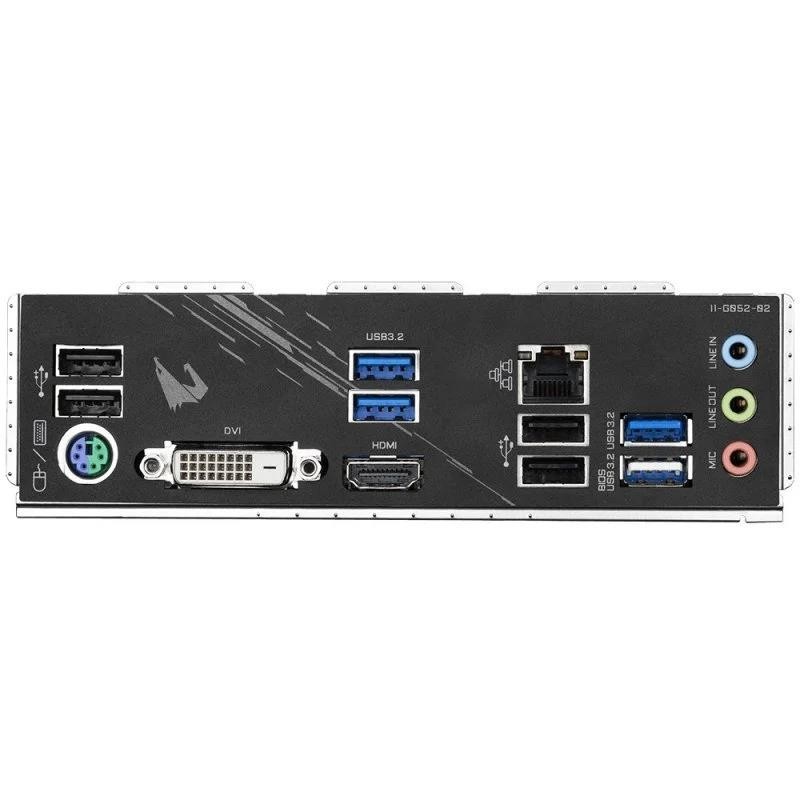

  • Back Panel Connectors
    • 1 x PS/2 keyboard/mouse port
    • 1 x DVI-D port
    • 1 x HDMI port
    • 4 x USB 3.2 Gen 1 ports
    • 4 x USB 2.0/1.1 ports
    • 1 x RJ-45 port
    • 3 x audio jacks
    • I/O Controller
    • iTE® I/O Controller Chip
    • H/W Monitoring
    • Voltage detection
    • Temperature detection
    • Fan speed detection
    • Overheating warning
    • Fan fail warning
    • Fan speed control
    • * Whether the fan speed control function is supported will depend on the cooler you install.
  • BIOS
    • 1 x 256 Mbit flash
    • Use of licensed AMI UEFI BIOS
    • PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
  • Unique Features
    • Support for APP Center
    • * Available applications in APP Center may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications.
    • @BIOS
    • EasyTune
    • Fast Boot
    • Game Boost
    • ON/OFF Charge
    • RGB Fusion
    • Smart Backup
    • System Information Viewer
    • Support for Q-Flash Plus
    • Support for Q-Flash
    • Support for Xpress Install
  • Bundled Software
    • Norton® Internet Security (OEM version)
    • Realtek® 8118 Gaming LAN Bandwidth Control Utility
  • Operating System
    • Support for Windows 10 64-bit
  • Form Factor
    • Micro ATX Form Factor; 24.4cm x 24.4cm
